Diameter Steel Material Borehole Seismic Receiver Engineering Seismograph for Multi-wave Seismic Surveys

Brand Name : Gold

Model Number : WZG-24C

Certification : ISO9001 CCC CE

Place of Origin : Chongqing, China

MOQ : 1 set

Price : Negotiated

Payment Terms : L/C,D/A,D/P,T/T,,MoneyGram

Supply Ability : 1 set per 5 days

Delivery Time : 5-8 working days

Packaging Details : Carton

Product Name : Engineering Seismograph

Application : borehole seismic receiver

Channels : 24

OEM/ODM : Acceptable

Depth : 50m to 100m

Frequency : 38hz

Diameter : 50/40mm

Arm : Arm open geophone

Material : Steel

Contact Now

I-channel Digital Seismograph For Mud And Stone Flows
Diameter Steel Material Borehole Seismic Receiver Engineering Seismograph for Multi-wave Seismic Surveys

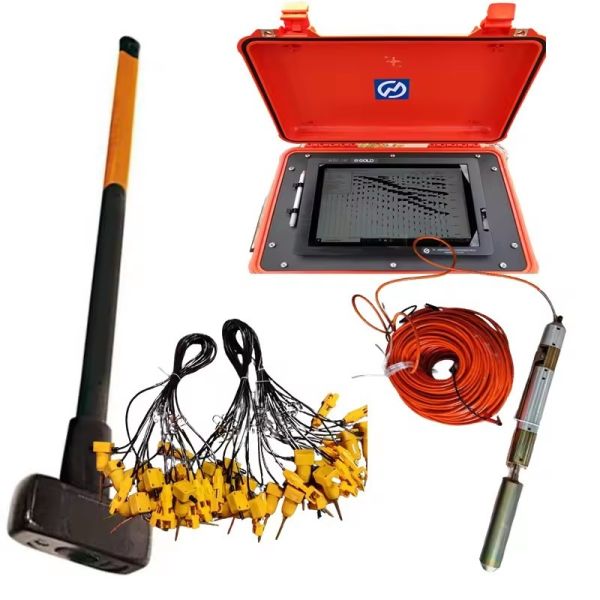

About the WZG-24C/48C Engineering Seismograph
Our engineered seismic instruments can explore at depths from a few meters to hundreds of meters, allowing for extensive data collection. By utilizing the delay capability, the instrument can collect seismic data from deeper formations, increasing overall analysis depth. This versatile instrument is ideal for various seismic work applications including reflection, refraction, surface wave exploration, pile inspection, ground pulsation measurements, seismic imaging, vibration measurements and wave velocity (shear wave) testing.
Key Applications
  • Building base, roadbed and foundation engineering detection
  • Tunnel construction detection
  • Large and medium reservoir monitoring
  • Bridge engineering inspection
  • Environmental and geologic engineering hazard detection and appraisal
  • Landslide, karst, mud and stone flow, dig-out area, active fault detection
Diameter Steel Material Borehole Seismic Receiver Engineering Seismograph for Multi-wave Seismic Surveys
Product Features
  • All-in-one unit with high stability: Integrated tablet PC with high configuration and shakeproof, dustproof, waterproof design
  • Large internal lithium battery with long endurance
  • Fast sampling: 24-bit A/D, minimum sample interval of 50μs for 24 channels
  • Windows 8 system for easy and fast operation
  • Data transfer via USB port
  • Powerful software with high resolution long section and colorful graph display
  • High consistency in amplitude and phase with low distortion
  • Continuous background noise monitoring for trigger signal reception
  • Flexible configuration with easy expandability
Diameter Steel Material Borehole Seismic Receiver Engineering Seismograph for Multi-wave Seismic Surveys Diameter Steel Material Borehole Seismic Receiver Engineering Seismograph for Multi-wave Seismic Surveys
Technical Parameters
Parameter Specification
Channel number 24 /48
Sample stations 1024, 2048, 4096, 8192, 16384
Sample frequency Generally 10μs to 20ms; For micro-tremor survey: 1ms ~ 200ms optional
A/D converter 24 bit
Signal stack and amplification 32 bit
Dynamic range 144dB
Frequency bandwidth 0.1Hz ~ 4000Hz
Noises 1μV (full-frequency state)
Amplitude consistency ±0.2%
Phase consistency ±0.01ms
Distortion ±0.05%
Input resistance 20k
Crosstalk suppression ≥90dB
Tablet PC specifications Intel Core i3, 4GB RAM, 64GB SSD, 12-inch LCD (2160x1440), Windows 8.1, 7-hour battery
Internal battery Lithium battery for 18 hours continuous work
Working temperature 0℃~50℃, 90%RH
Storage temperature -20℃ ~ +60℃
Weight 12.3kg (WZG-24C), 12.8kg (WZG-48C)
Dimension 47cm * 35.7cm * 17.6cm
Diameter Steel Material Borehole Seismic Receiver Engineering Seismograph for Multi-wave Seismic Surveys Diameter Steel Material Borehole Seismic Receiver Engineering Seismograph for Multi-wave Seismic Surveys
Functions
  • Multi-wave seismic
  • Wave speed (sheared wave) survey
  • Transient multifold Rayleigh wave prospecting
  • Multi-wave high density seismic imaging
  • Shallow reflection survey
  • Shallow refraction survey
  • Foundation pile inspection
  • Civil engineering quality detection
  • Site constant shake survey
